QuantaPrime™ | Built for Harsh Chemicals

Reliable,
Leak-Free.

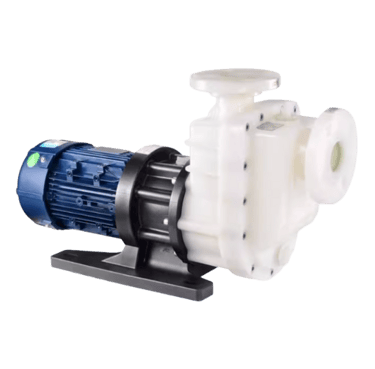

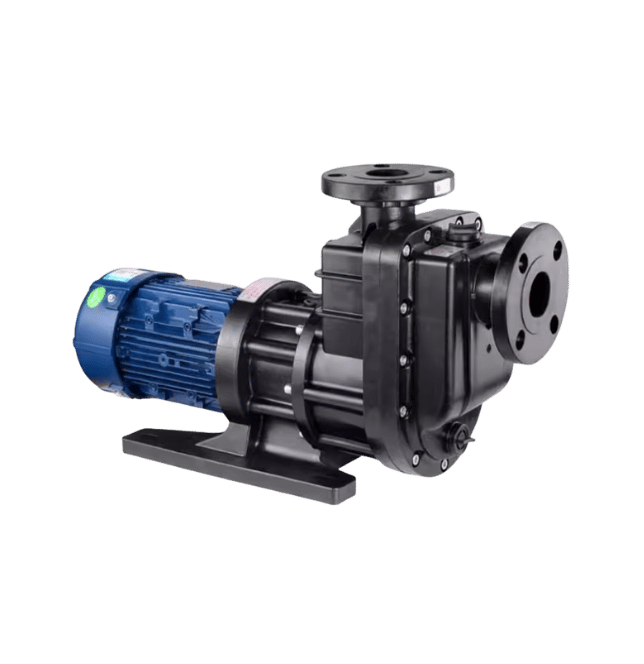

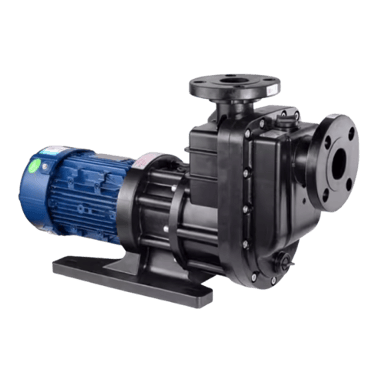

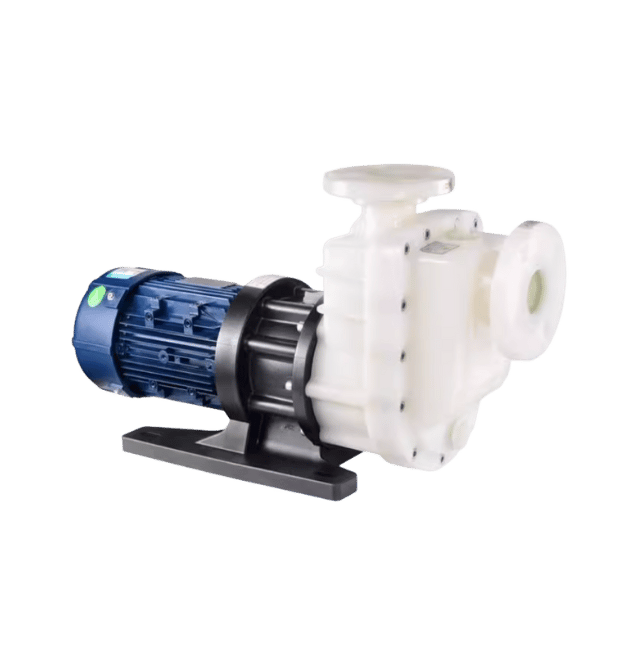

QuantaPrime™ by Hanstens is a heavy-duty self-priming chemical pump designed to handle corrosive and high-viscosity fluids with ease.

With seamless integration of the priming chamber and pump body, it eliminates external welds for maximum leak protection. Ideal for chemical transfer, wastewater circulation, and industrial applications where durability and precision are essential.

Key Specifications

• Flow Rate
  Wide capacity range from 170 to 510 L/min, suitable for high-volume chemical transfer operations.

• Head Range
  Delivers up to 22 meters of head, ensuring efficient delivery across various system heights.

• Power Output
  Available from 0.75 kW to 4 kW, with options in 50Hz and 60Hz for flexible integration.

• Self-Priming Capability
  Integrated long-cylinder design enables strong suction without external priming aids.

Materials of Constructions

• Wetted Components
  Constructed from FRPP or PVDF, these materials are specifically chosen for their outstanding chemical resistance, mechanical strength, and dimensional stability in corrosive environments.

• Shaft Seal
  Incorporates a combination of Silicon Carbide and Viton elastomers, delivering dependable sealing performance across a broad chemical range.

• Impeller & Internal Components
  Designed using chemically resistant plastics and corrosion-resistant alloys, these components ensure long-term durability with minimal wear under demanding conditions.

• Check Valve & Elastomers
  Constructed with compatible, high-quality materials to ensure system reliability, prevent backflow, and resist chemical degradation over time.

Sizing Guide

Selecting the right chemical transfer pump starts with understanding flow rate, head pressure, and motor capacity. Each QuantaPrime™ model is clearly labeled to simplify your selection process.

Model Breakdown: QuantaPrime T40 170-9-0.75

• T40 – Indicates a DN40 flange connection, suitable for general chemical transfer or water treatment systems.

• 170 – Denotes the maximum flow rate of 170 liters per minute (LPM), supporting efficient fluid handling in medium-scale applications.

• 9 – Refers to the maximum head of 9 meters, allowing for moderate system pressure requirements.

• 0.75 – Specifies a 0.75-kilowatt motor, ensuring robust and continuous operation across industrial environments.

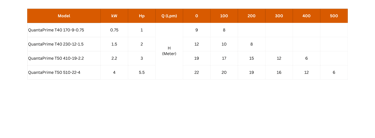

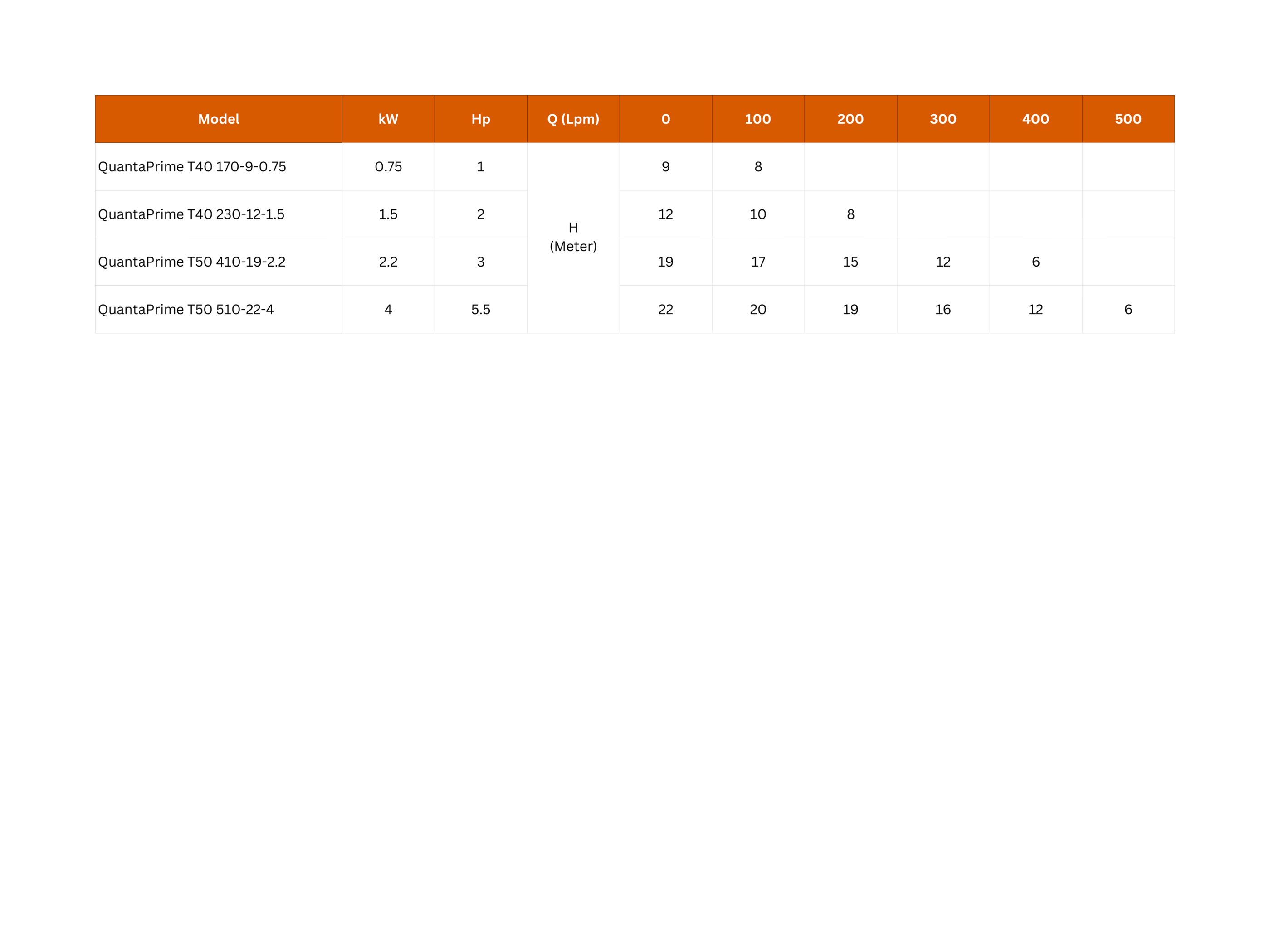

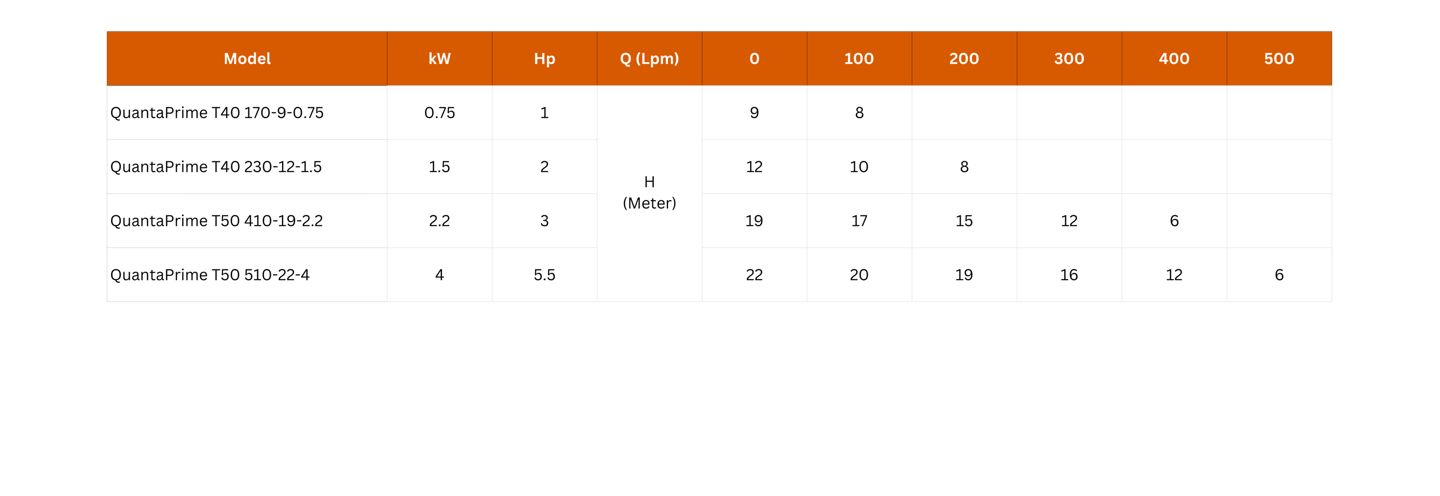

Models Overview

Explore our most commonly supplied QuantaPrime™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.
